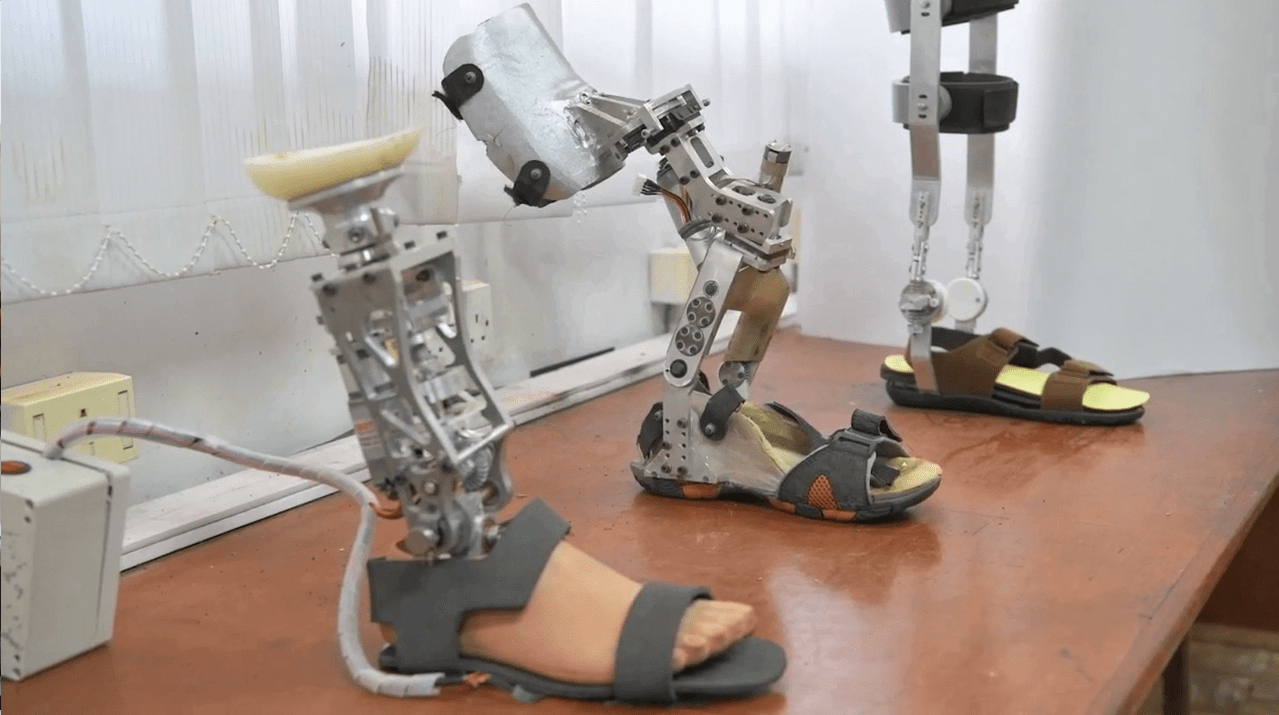

Image - Bionic Leg

People

Prof. Gopura RARC

Dr. Chathuranga KVDS

Dr. Madusanka DGK

Mr. Ranaweera RKPS

Laboratories

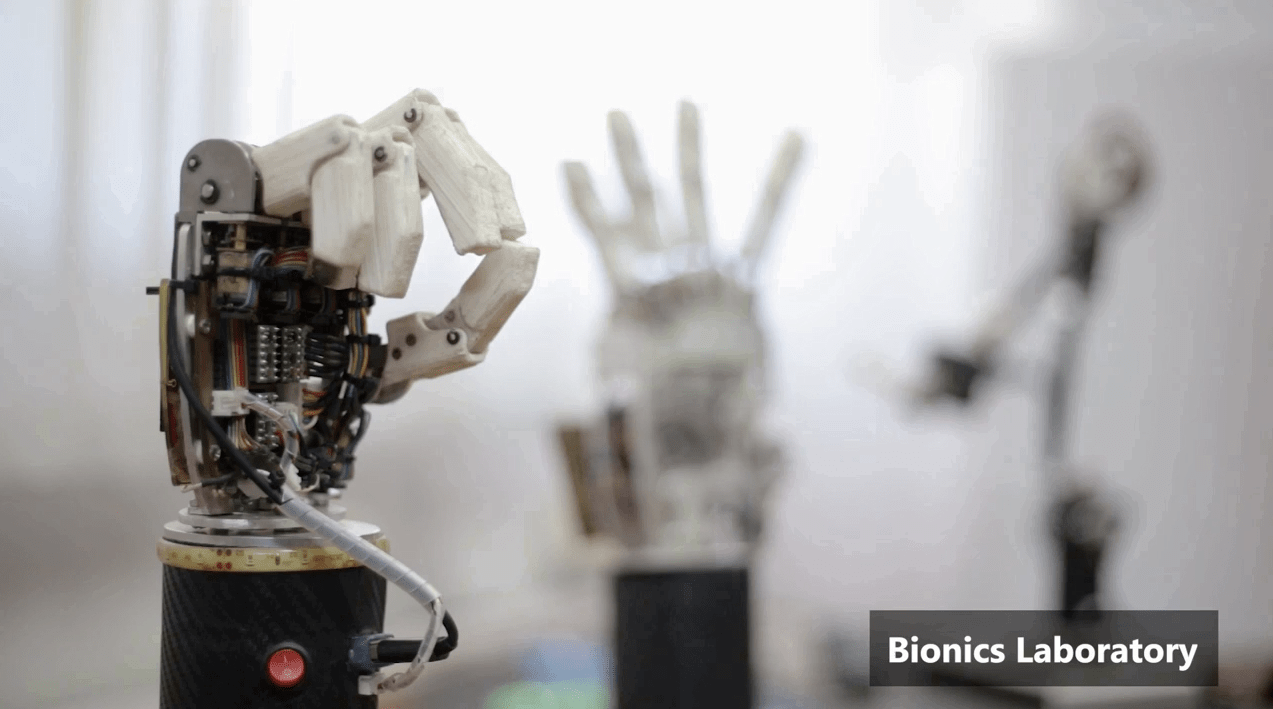

Bionics Laboratory

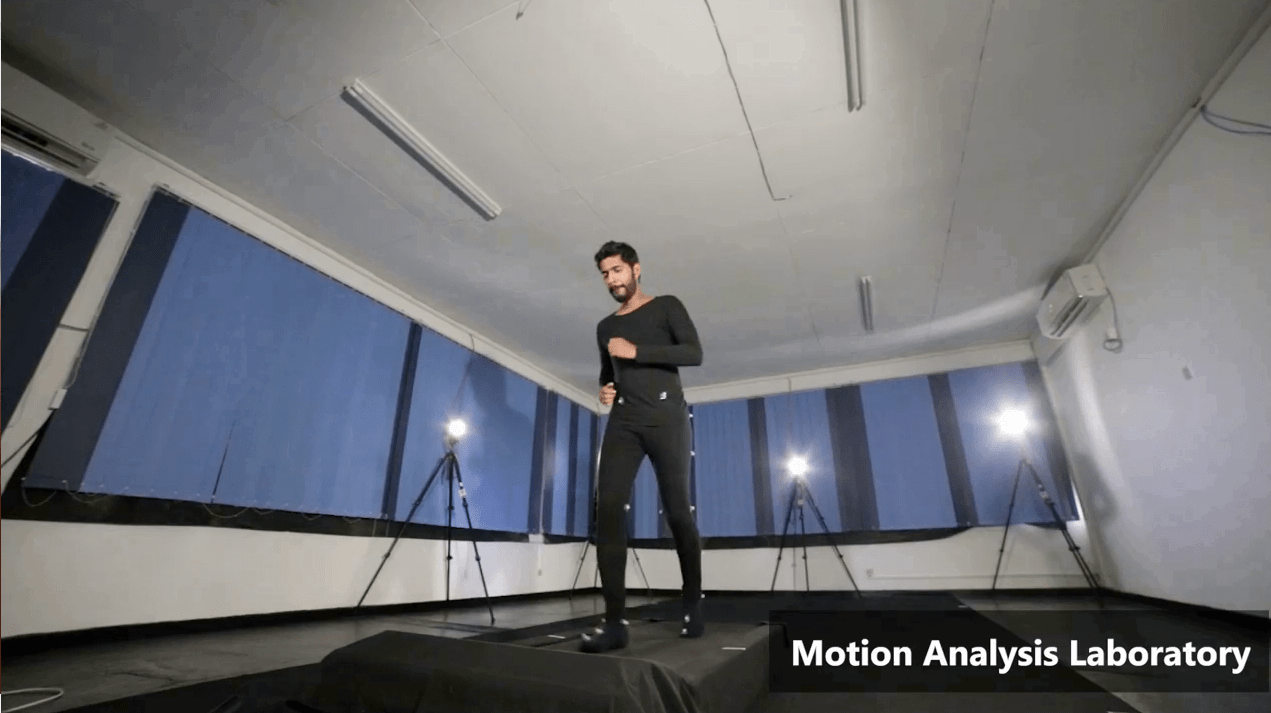

Motion Analysis Laboratory

Research

1. Development of Vision-Aided EMG based Grasping Pattern Classification System for Hand Prosthesis

Researcher(s)

Perera GDM

Supervisor(s)

Dr. Madusanka DGK

Abstract

Robotic prosthetic devices are the current trend and the future of prosthetic devices. Most of the current robotic prosthetic devices use Electromyography (EMG) signal as input signals for their controllers. EMG or visual feedback is used recently to predict the grasping intention of the user, but no one has fused both information for the prediction. However, the number of grasping types in the prediction is limited and most of the investigations were focused on hand gestures. In this paper, we propose a novel fusion method that can improve the prediction accuracy of the EMG system by adapting the visual information. We propose a weight scheme for selected objects which has higher weights for high usage patterns. The investigation revealed that the ANN outperformed KNN, LDA, NB and DT by achieving the highest mean True Positive Rate (73 ± 7.59%). The proposed feature set (Age, Gender and Handedness) showed that their influence increases the accuracy by 16.05 ± 2.70% for ANN. The proposed fusion method combined Majority Vote results and the weight scheme to improve the prediction accuracy of most suitable grasping patterns for the target object by 23.92 ± 8.80%  for the highest usage pattern and 9.30 ± 0.84% for the second-highest usage pattern. Read more...

2. Investigation of Effect of Human Robot Interaction with Lower Limb Exoskeletons

Researcher(s)

Chandrasiri MDSD

Supervisor(s)

Prof. Gopura RARC

Abstract

Continuous improvements of exoskeletons (wearable robots) is essential to enhance their performance and the user experiences. Therefore, it is necessary to determine user comfort levels while wearing wearable robots. This aspect can be analyzed by determining human-robot interaction (HRI). The HRI is classified in cognitive-HRI (cHRI) and physical-HRI (pHRI) in the literature. cHRI involves the identification of complex human expression and physiological aspects. These information can be observed using a human-robot cognitive interface. Electroencephalogram (EEG) and electromyography (EMG) are mainly used sensing methods in cHRI. Furthermore, pHRI involves evaluating physical quantities such as position, force, and pressure between humans and robots.

This research is carried out to investigate the effect of HRI with lower limb exoskeletons. In order to determine HRI, experiments are carried out with a dummy lower limb exoskeleton which was designed and fabricated in compliance with human ergonomics and biomechanics. Furthermore, sEMG, motion analysis, and SMP sensory systems were used to carry out the experiments. Moreover, a simulation lower limb model with ground force reaction prediction was developed to determine the inverse dynamics. The experiments were carried out with six healthy subjects for the walking motion without exoskeleton, with the exoskeleton, and exoskeleton with weight attachments. A qualitative, comfortable level analysis was carried out simultaneously for each experiment. The experiment results have provided better understanding of HRI for developing ergonomically comfortable lower limb exoskeleton devices. Read more...

3. Development of a soft linear actuator for use in wearable assistive exosuit

Researcher(s)

Kulasekera AL

Supervisor(s)

Dr. Chathuranga KVDS / Prof. Gopura RARC / Dr. Lalitharatne SWHMTD

Laboratory

Computational Sensing and Smart Machines (CSSM) laboratory

Abstract

This research focuses on developing soft robotic actuators for use in wearable assistive exosuits. Modern exosuit development is leading the way in replacing the contemporary exoskeleton systems which are, bulky, rigid, and restrictive for natural human motion, in many applications. These exosuits require flexible, lightweight actuators with high force-to-weight ratios. The aim of this research is to develop soft robotic artificial muscle actuators, which can contract like biological muscles to power the future exosuits. Concepts such as being low-profile, flexible, having guided contraction, quick self-return, and rapid actuation and novel displacement sensing techniques has been combined to develop the future soft linear vacuum artificial muscle actuators. Read more...

4. Compensation of Muscle Fatigue Effect on Active Compliance Control of a Hip Exoskeleton Robot in Stoop Lifting

Researcher(s)

Dasanayake NP

Supervisor(s)

Prof. Gopura RARC / Dr. Lalitharatne SWHMTD

Laboratory

Bionics Laboratory

Abstract

Among different types of exoskeletons used by humans, a strength enhancement exoskeleton utilizes actuators to provide extra forces on joints directly, thus enhancing musculoskeletal strength of the user. Human-robot interaction (HRI) of these robotic exoskeletons must be characterized by high compliance or low impedance properties, which is achieved using active compliance controllers. User intention estimation, which is the highest level of active compliance control, has been achieved using EMG-based muscle torque estimation in literature. This torque estimation method maps the acquired EMG signals to muscle torques using an EMG-to-torque model. However, the neural-to-muscle activation relationship in this method depends on many external factors and muscle fatigue is one of the prominent. EMG features have been utilized in previous work to identify and quantify the muscle fatigue manifested in EMG signals. Spatial information obtained from multiple-channel EMG has shown better reliability in muscle fatigue identification when compared with single-channel information. A compliance-controlled exoskeleton with a muscle torque estimator which accounts the identified muscle fatigue can be expected to have better performance when compared with existing ones, especially for assisting demanding tasks, like stoop lifting. However, muscle fatigue quantified using multiple-channel EMG has been rarely involved in improving the high-level control of exoskeletons. In this research, a muscle torque estimation-based compliance controller, with a fatigue effect compensator for exoskeletons will be developed. Furthermore, the fatigue effect identification will be based on multiple-channel EMG signals. Read more...
